Dundalk Narvi Standard Chimney Kit

Narvi Standard Chimney Flue Kit (aka Kota Steel Flue Kit 15 – 6090)

The Narvi Standard Chimney Flue Kit offers a durable and secure solution for sauna heaters and fireplaces. Its design prioritizes fire safety and effective insulation, especially around the ceiling feedthrough. The modular steel construction allows for flexible installation tailored to the unique requirements of each building.

The uninsulated start pipe, made of 100mm stainless steel with a 120/122 mm diameter, is compatible with all sauna stoves featuring a 119mm smoke outlet. Designed to fit inside the insulated pipe, this stainless steel component facilitates easier removal and maintenance of both the stove and chimney.

Using an optional adapter (product 6015-111), this sauna smoke flue is compatible with any sauna stove featuring a 115mm flue outlet.

The flue’s outer casing is constructed from zinc-coated steel and coated with black heat-resistant paint. It measures 255 mm in diameter and is insulated with fire-resistant mineral wool. The inner tube, with a diameter of 125 mm, is made from stainless steel. The flue includes a permanently installed damper and carries CE marking, verifying compliance with fire safety class T600 standards.

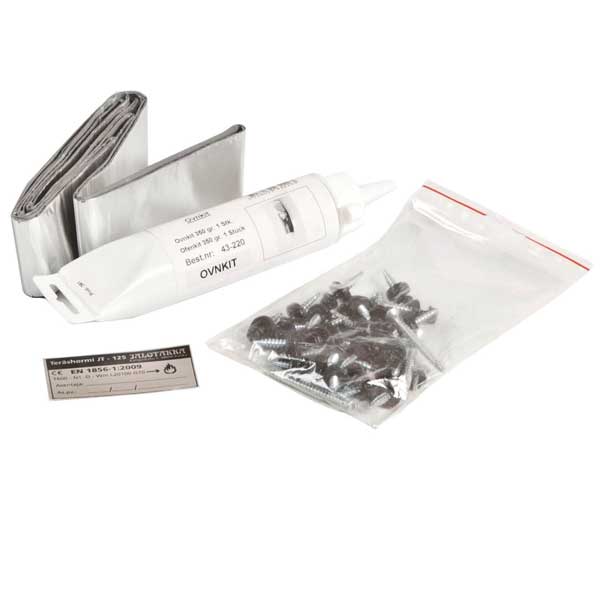

• The kit includes all parts and accessories needed for the installation and connection of the flue.
• The length of the insulated section of the Kota Steel Flue 15 is 1,500 mm, and it includes all parts needed for installation:


  • The max. The full size of the main kit without extension sections is approximately 2500 mm.
  • 1170 mm insulated damper section and 300 mm flue section (inner diameter of the pipe is 125 mm)

Includes

• 1000 mm non-insulated, stainless steel connection pipe (inner diameter 120 mm, outside diameter 122)

• Fastening ring

• Feedthrough flange 0–22 degrees

• Feedthrough cover, height 400 mm

• Carrier ring of the flue with a perforated band

• Support of the base

• Rubber sealing of the roof

• Rainfall cover of the flue
